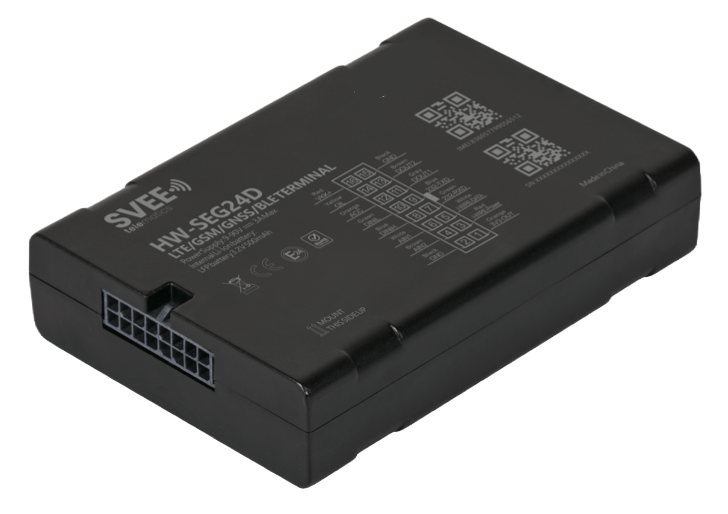

HW-SEG24D
ADVANCED 4G GPS TRACKER (LTE Cat1 / GSM / GNSS)
HW-SEG24D is advanced and reliable tracker device for a wide range of vehicles in different applications. Fast and most accurate positioning data is delivered thanks to its high efficient internal components and compact size. Flexible system design for several peripherals provides uninterrupted and configurable solutions.
SPECIFICATIONS
| GNSS | GPS / GLONASS / GALILEO / BEIDOU / AGPS / QZSS / SBAS |
| Reciever | 64 channel |
| Tracking Sensitivity | -160 dBm |
| Positioning Accuracy | <2.0m CEP |
| Velocity Accuracy | < 0.1 m/s |
| Hot start | < 1s |
| Warm start | < 4s |
| Cold start | <28s |
| GSM Technology | LTE (Cat 1) / GSM / SMS |
| 2G bands | GSM:850 / 900 / 1800 / 1900 Mhz |
| 4G LTE Cat 1 bands | LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| Data Transfer | LTE TDD:B38/B40/B41 |
| GSM:Max85.6Kbps(DL)/Max85.6Kbps(UL) | |
| Data Support | SMS(TXT/PDU) (Commands and configuration via SMS) |
| Power supply | 9 – 90V DC |
| Internal Back-Up Battery | 500mAh Li-Ion LFP Battery / 3.2V |
| Power Consumption | At12V<6mA (OnlineSleep) |
| At12V<32mA (Normal) |
| Latitude & Longitude | Decimal |
| Date & Time | UTC |
| Speed | Kilometer/Hour |
| Direction | 0-360 degrees |
| Bluetooth | 5.0 |
| Supported Peripherals | Temperature and Humidity sensors, Fuel sensors, Universal BLE sensors, Barcode Scanners, iButton Readers etc. |
| Module | BC76 |
| Dimensions | 93 x 65 x 21mm (L x W x H) |
| Weight | 108 g |
| Ingress Protection Rating | IP41 |
| Operating temperature (without battery) | -20C to +75C |
| Storage temperature (without battery) | -40C to +85C |
| Operating temperature (with battery) | -20C to +55C |
| Operating Humidity | 5% to 95% non-condensing |
| Digital Inputs | 4 |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| 1-Wire | 1 |
| RS232 | 1 |
| GNSS Antenna | Internal High Gain |
| Cellular Antenna | Internal High Gain 4G/GSM |
| USB Interface | Type-C USB (firmware upgrade) |
| LED Indication | 4 status LED lights |
| SIM Card | Nano-SIM |
| Memory | 16 MB internal flash memory |
| Firmware Update | FOTA Web / USB / Serial Interface |
| Sensors | Accelerometer (G-force upto 4g) |
| Features / Scenarios / Alerts | Ignition On/Off Status alert, Over-Speed detection, SOS Alert, Engine lmmobilizer, iButton Read Notification, Temperature and Humidity Sensor support, Universal BLE Sensor support, Fuel Sensor support, Device Battery Low, Auto / Manual Geofence, SMS Query, Trip, GNSS Fuel Counter, DOUT Control Via Call, Excessive ldling detection, Unplug detection, Towing detection, Crash detection, Tampering/Battery removed, Jamming Alert (GSM and GPS) |
| Basic Driving Behavior Monitoring (Green Driving) | Harsh Acceleration alarm, Harsh Deceleration alarm, Harsh Cornering alarm, Collision alarm, Vibration alarm |
| Listen-in | Directly listen to the sounds around the car via SIM-Card number |
| Upload Blind Data | Store location data in the network blind area and upload this data when the GSM signal is good. |
| Sleep Modes | GPS Sleep, Online Deep Sleep, DeepSleep, Ultra Deep Sleep |
| Configuration and Firmware Update | FOTA,USB |
| SMS | Configuration, Debug |
| GPRS Commands | Configuration, DOUT control |
| Time Synchronization | GNSS/NTP Server |
| Regulatory | CE / RoHS / E-mark |
ALL TRACKERS
Real Time Tracking
Upload Blind Data
Upload Inflection Data
Power Off Alarm
Remote Upgrade
Over Speed Alarm
Basic Driving Behavior Monitoring
SMS Query
Listen-in
SOS Button
Ignition Detection
Fuel Cut Off
Advanced
HW-SEG24D
Multifunction
VTB-4G
Multifunction

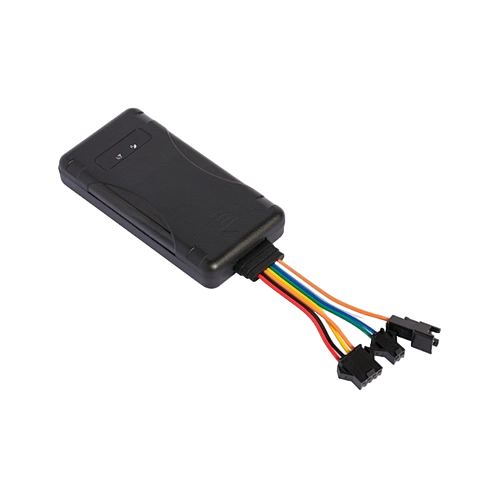

VTB-2G
Motorcycle

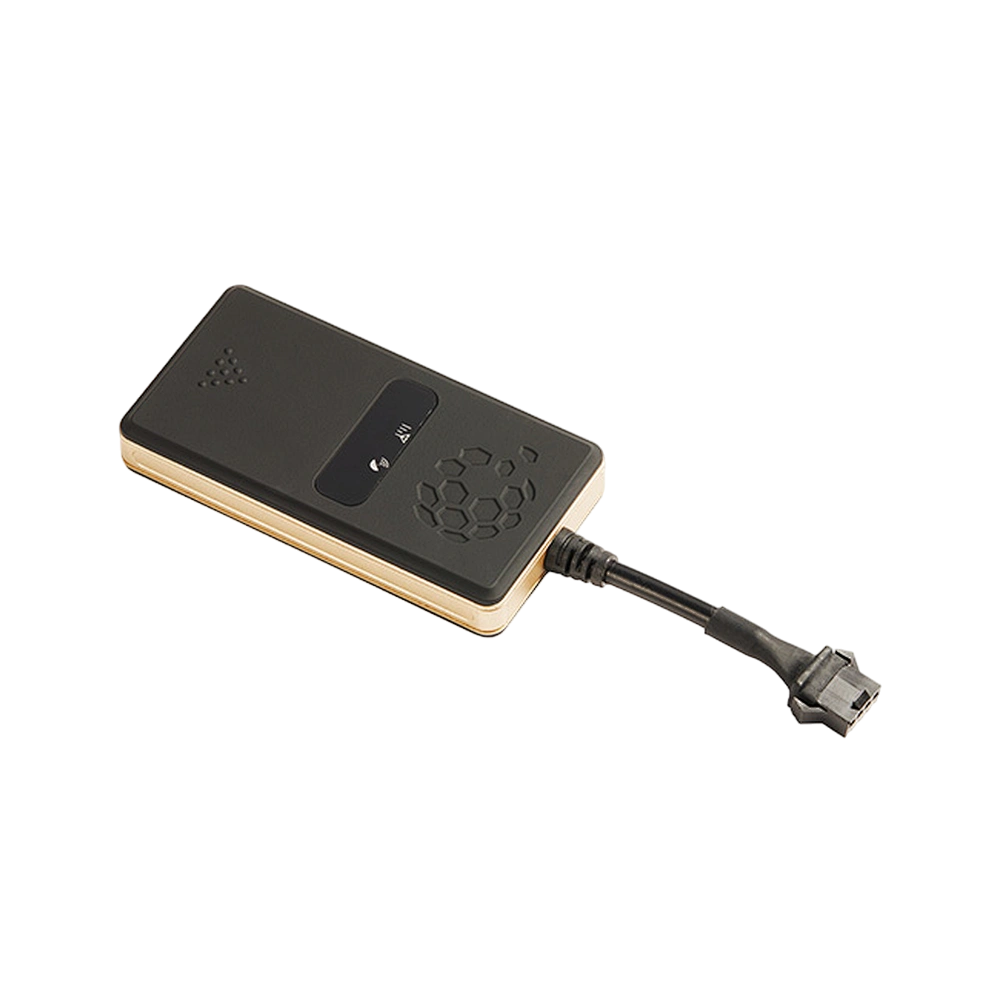

MT-4G
Motorcycle

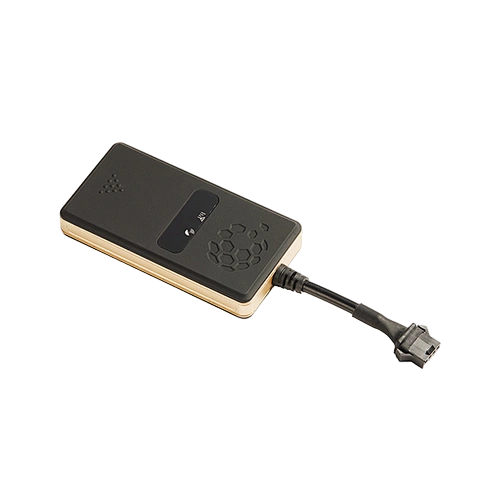

MT-2G
Basic

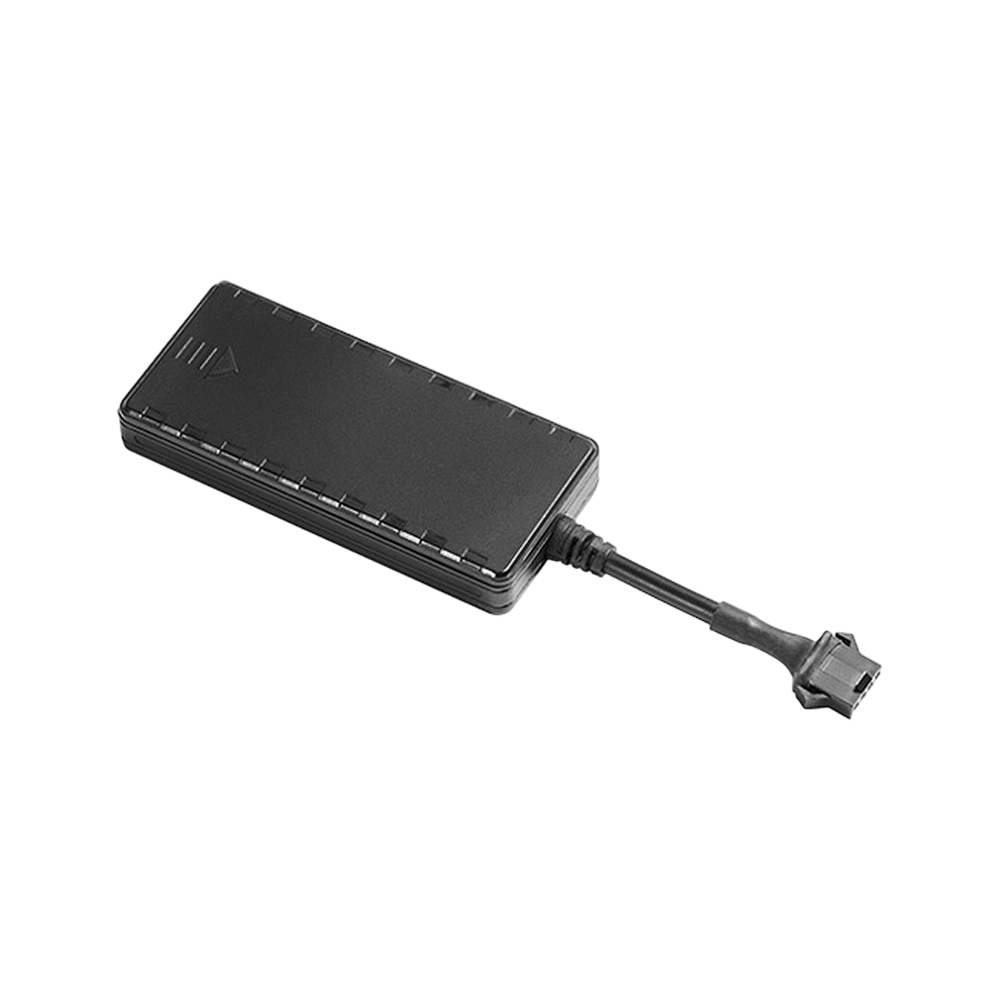

SVT-4G
Basic
EVT-4G
Mini

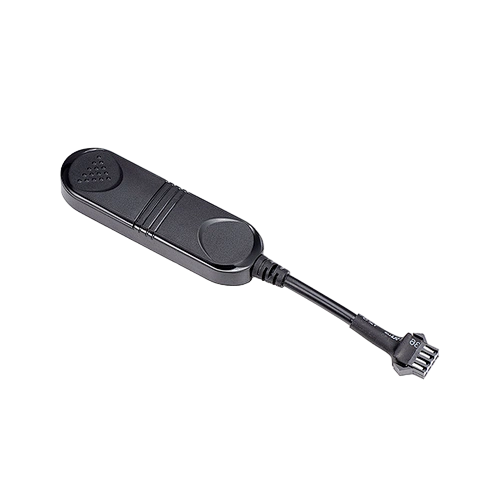

GTM-2G
Mini

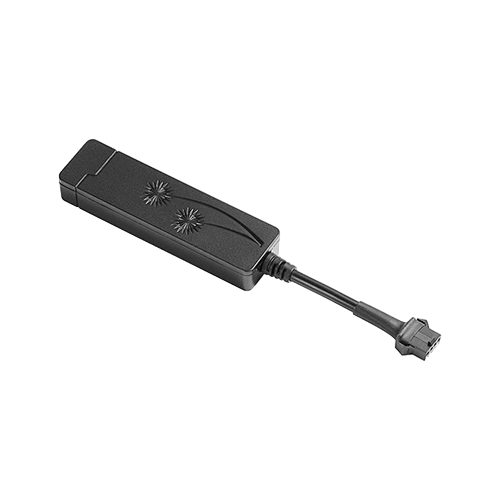

STM-2G
Mini

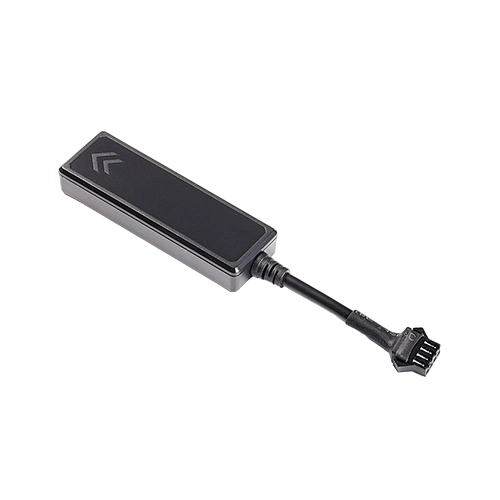

ETM-2G
Asset

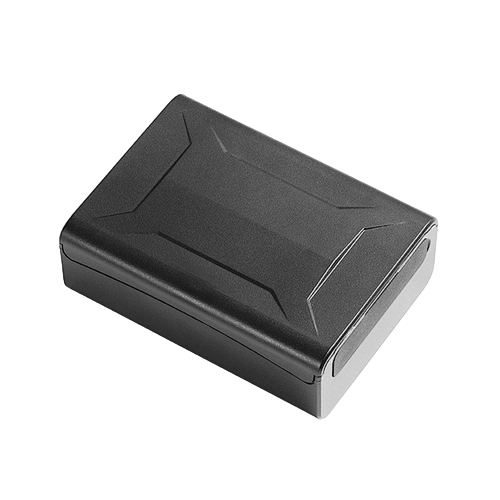

AT-2G
Asset

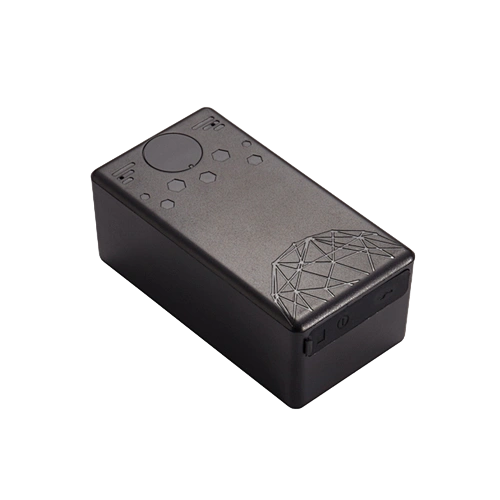

ATW-2G
Asset
AT-4G
Asset

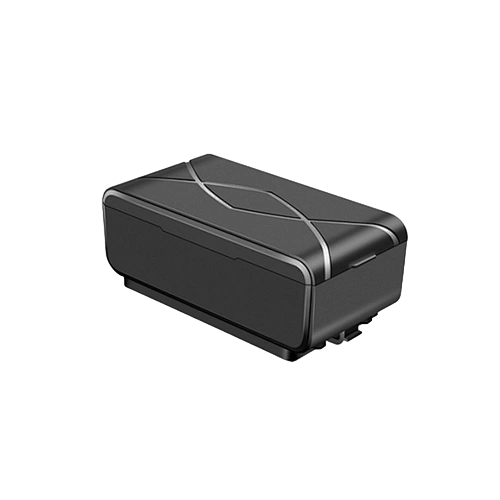

ATL-2G
Asset

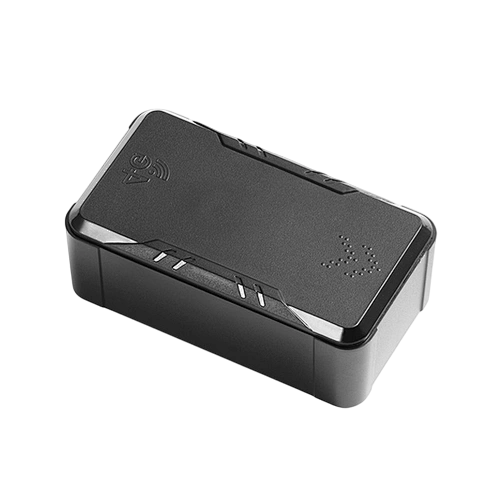

ATL-4G
OBD

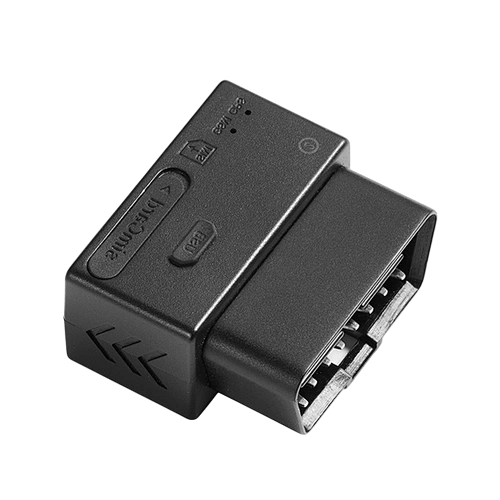

OVT-2G
OBD

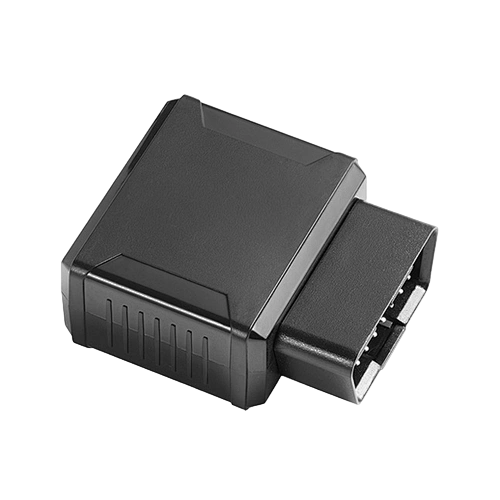

OVT-4G
